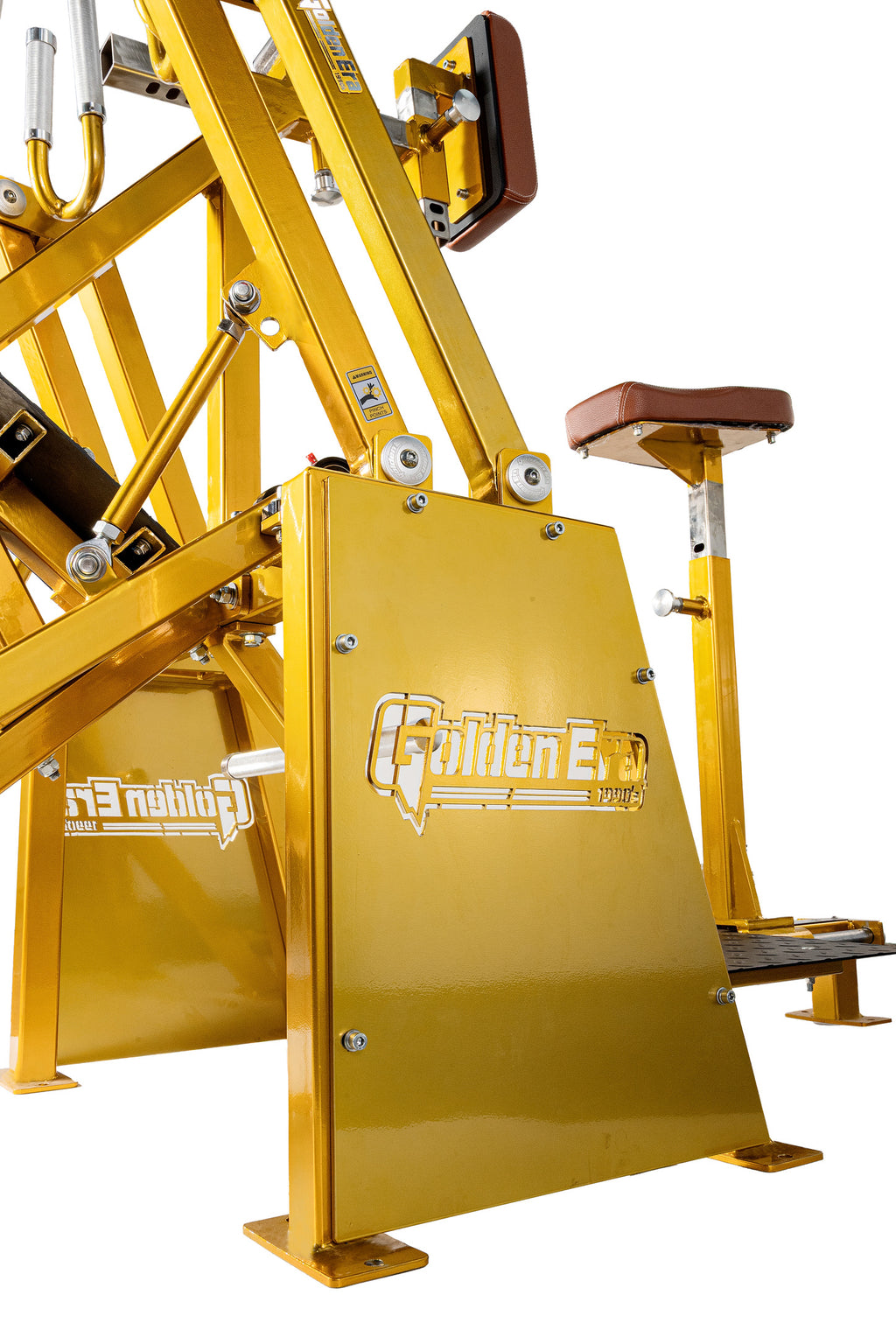

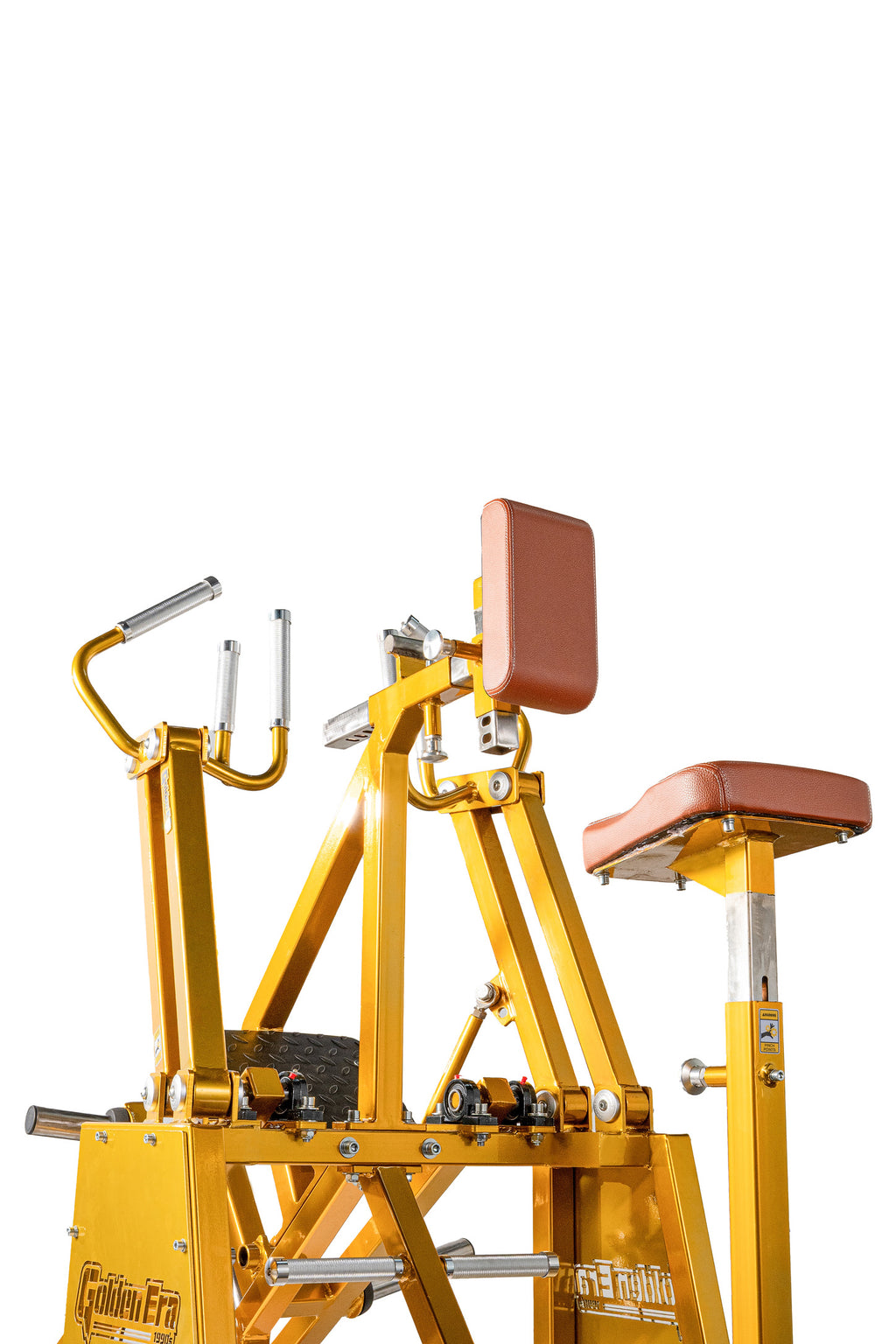

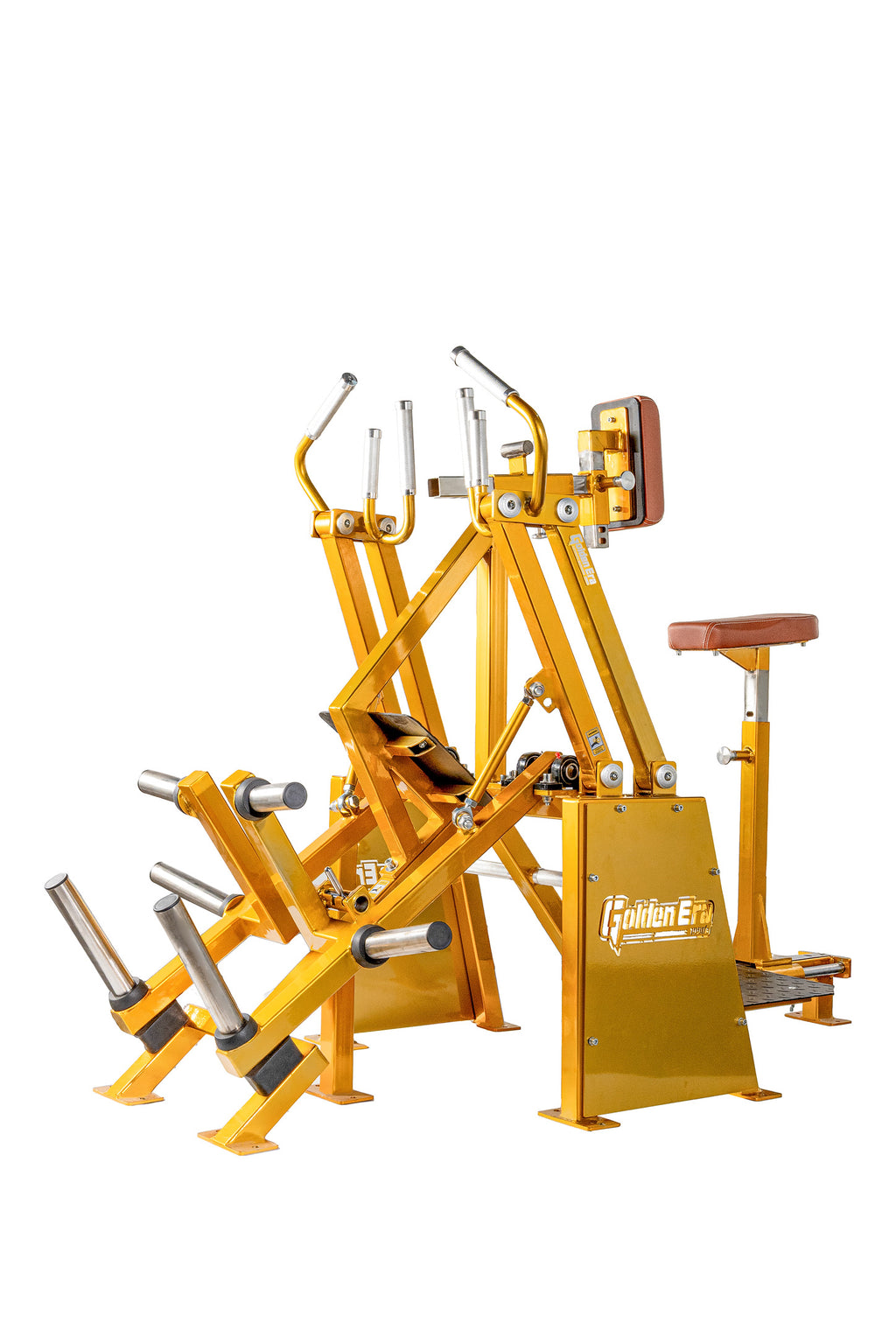

Classic Era Series · GEC-004 · Plate-loaded

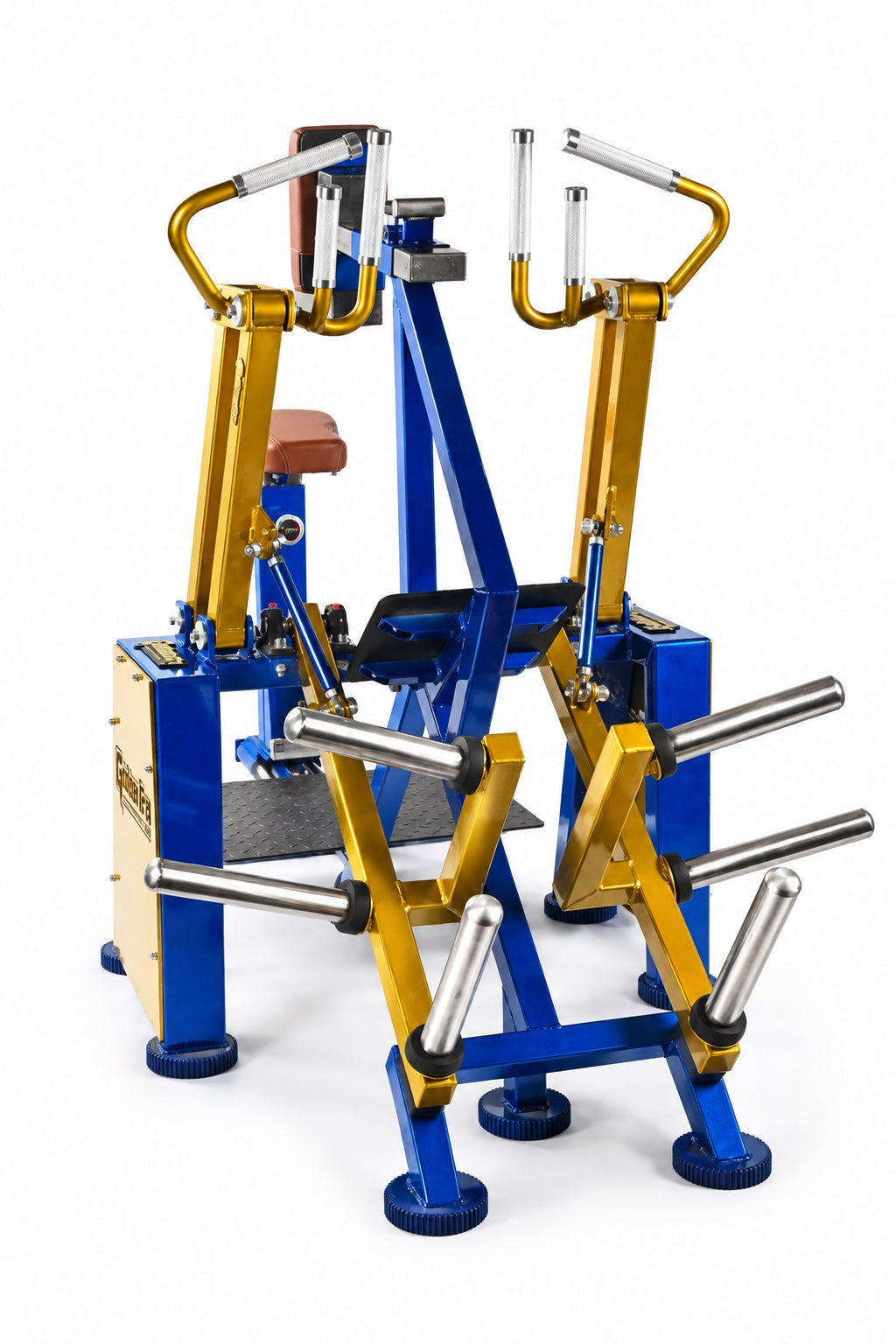

Super Row
Chest-supported to keep the focus on the back.
- No torso swing
- A deep stretch at the front

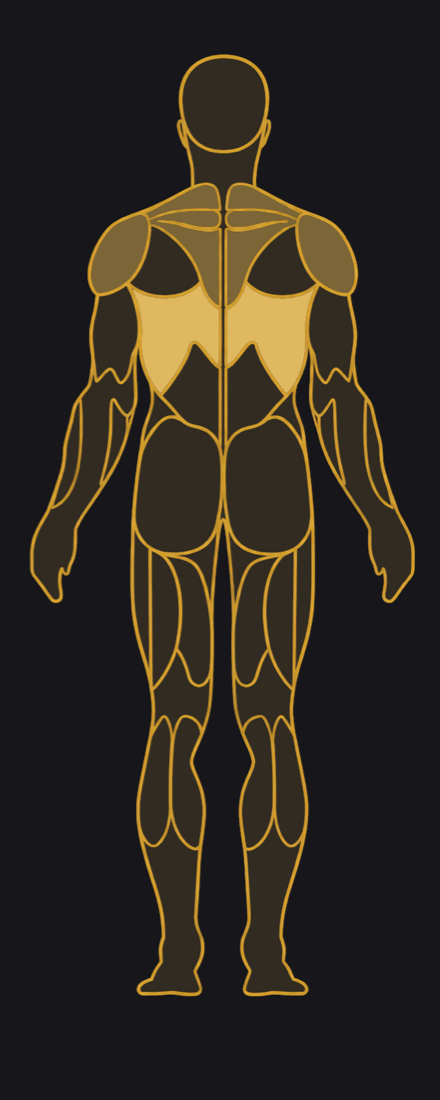

- A hard squeeze between the blades
Machines are quoted individually, not sold through online checkout. We reply with a quote, shipping to your location and a confirmed build slot.
Why it feels different
On the GEC-004, chest support reduces the need to stabilize the torso during the row, helping limit hip drive and excess momentum.

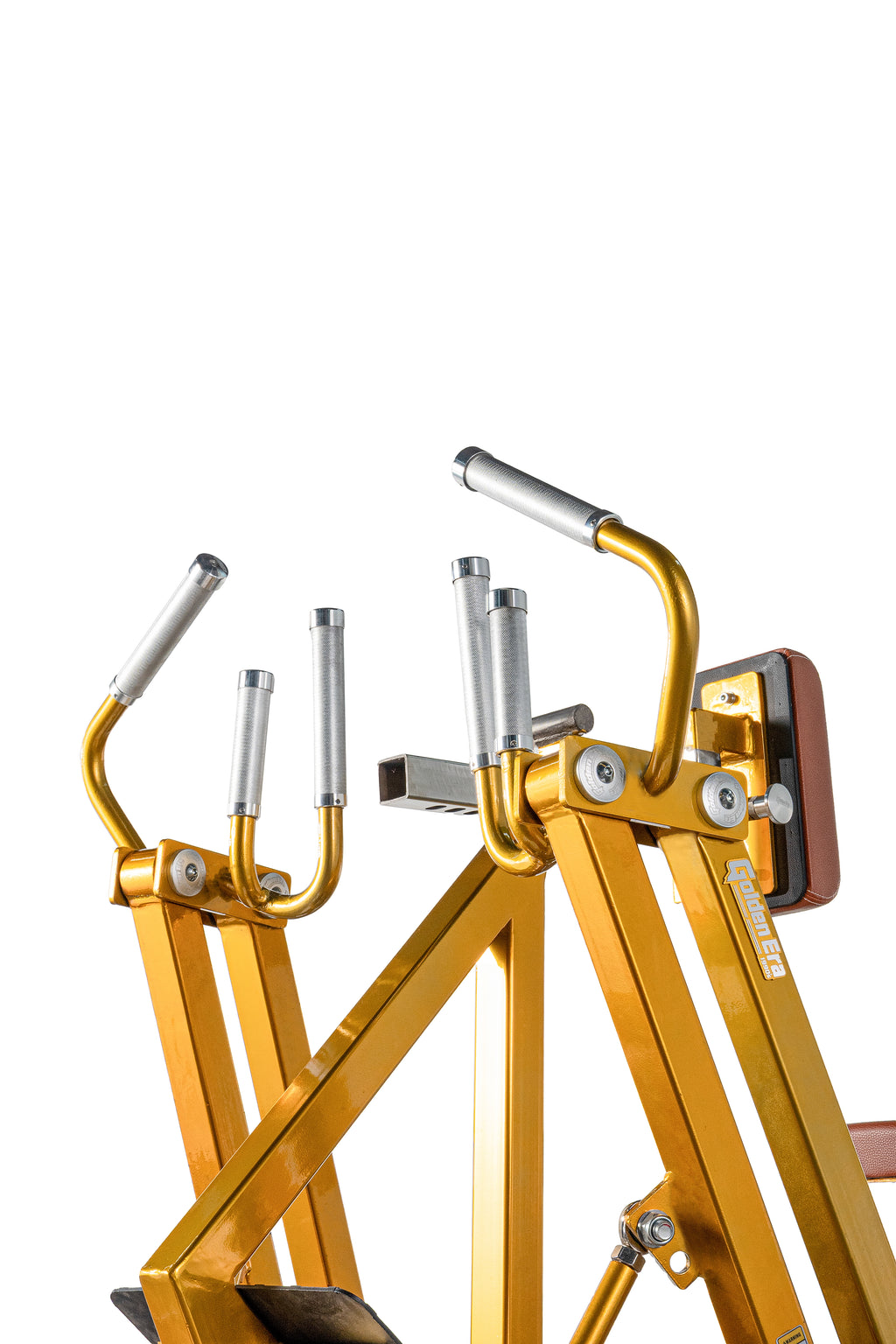

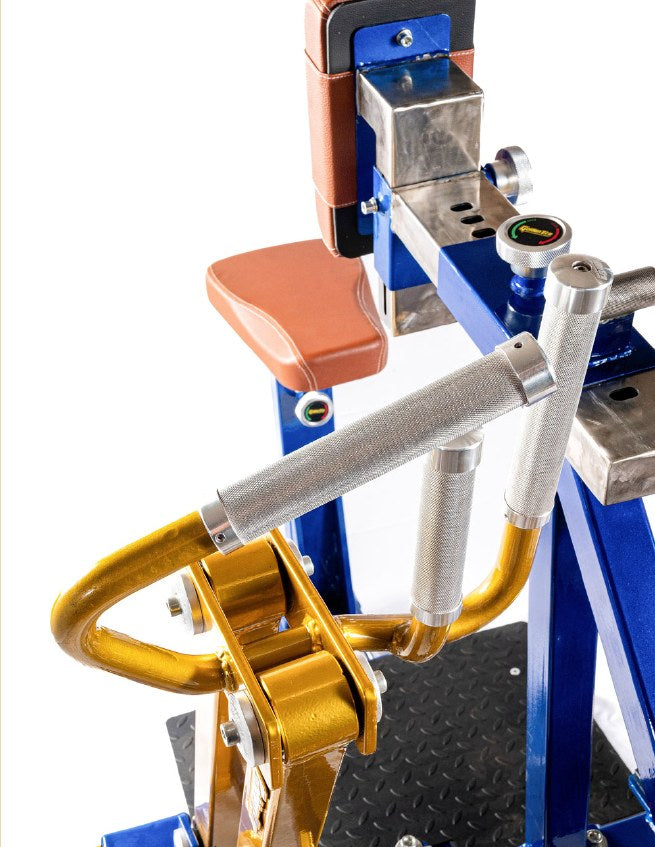

The dual-linkage arms pull on a path that widens at the front and closes toward the ribs, which allows greater scapular movement through the pull instead of stopping short at a fixed handle.
Plate-loaded and independent, so a strong side cannot drag a weak one through the set. No cam, no cable — just plates on the linkage.
- Patented dual-linkage arm path
- Independent arms, unilateral or bilateral
- Commercial-grade welded steel frame
- Golden brown vinyl over one-piece moulded foam
- Chest pad, no torso compensation
- Plate-loaded resistance throughout

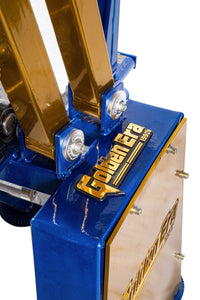

- Sealed pivot bearings, no bushings
The patented system
One system.
Four machines.
Conventional plate-loaded machines move on one arc. The body does not.

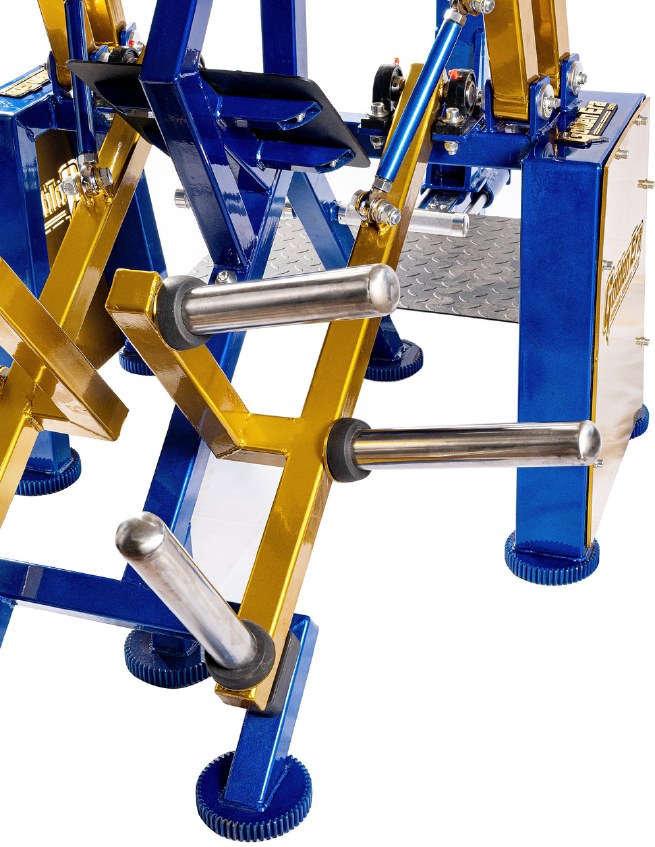

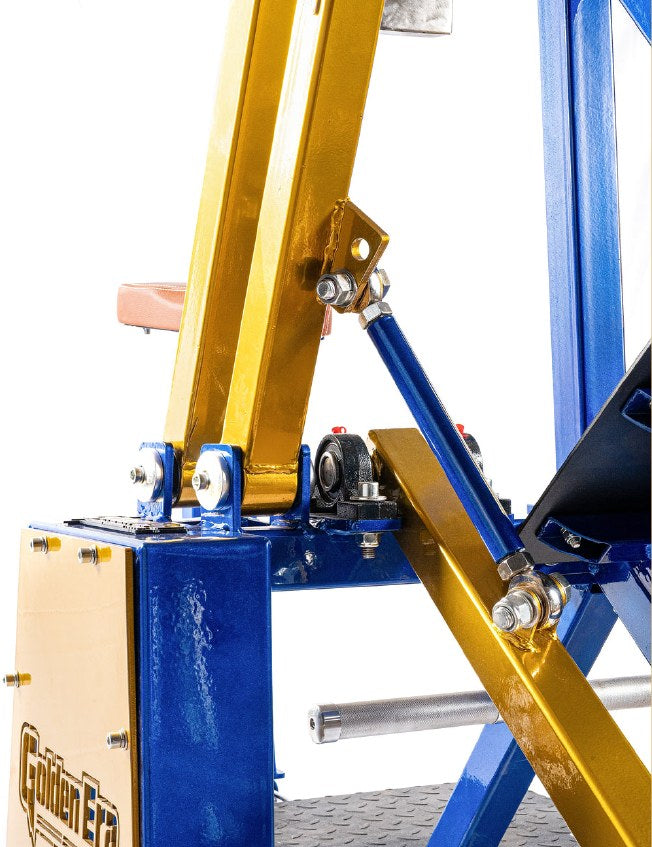

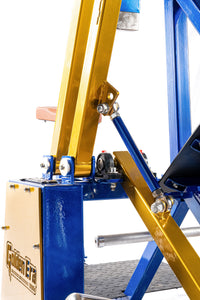

The dual-linkage system joins a second lever to each arm through a second pivot and a rigid link, so the handle path is wider at the bottom and converges at the top. Plates hang directly off the linkage — no cam, no cable.
Fitted to GEC-001 · GEC-002 · GEC-003 · GEC-004
- Length
- 80 in2030 mm
- Width
- 39 in1000 mm
- Height
- 58 in1470 mm
- Mass
- 326 lb148 kg
- Footprint
- 22 sq ft2.03 m²
- Loading dia.
- 2 in50 mm
- Upholstery
- Golden brown vinyl
- Std. finish
- Titanium gold
- Opt. finish
- 6 colours — see below
- Custom colours
- Available
- Packaging
- Shipped assembled on a pallet
- Warranty
- 1-year limited
- Designed in
- Canada
Frames are spray-coated and heat-cured to order. Send the RAL reference with your quote request. A custom colour may extend the lead time. Swatches are approximate; final colour is based on the factory colour card.
Add machines to your quote list and send it. Machines are quoted individually rather than purchased through online checkout.

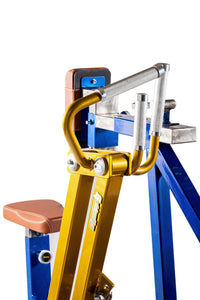

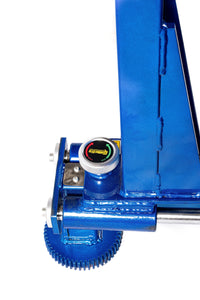

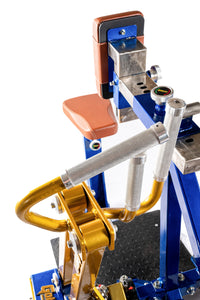

Titanium gold as standard; black, Royal blue, pearl white, pearl red, pearl black or black crackle as options; or any RAL colour on request.
Built to order in 60–90 calendar days. Machines ship fully assembled on a pallet.
Shipping is arranged for your location. Transit time, cost and delivery are confirmed in your quote.
