Classic Era Series · GEC-001 · Plate-loaded

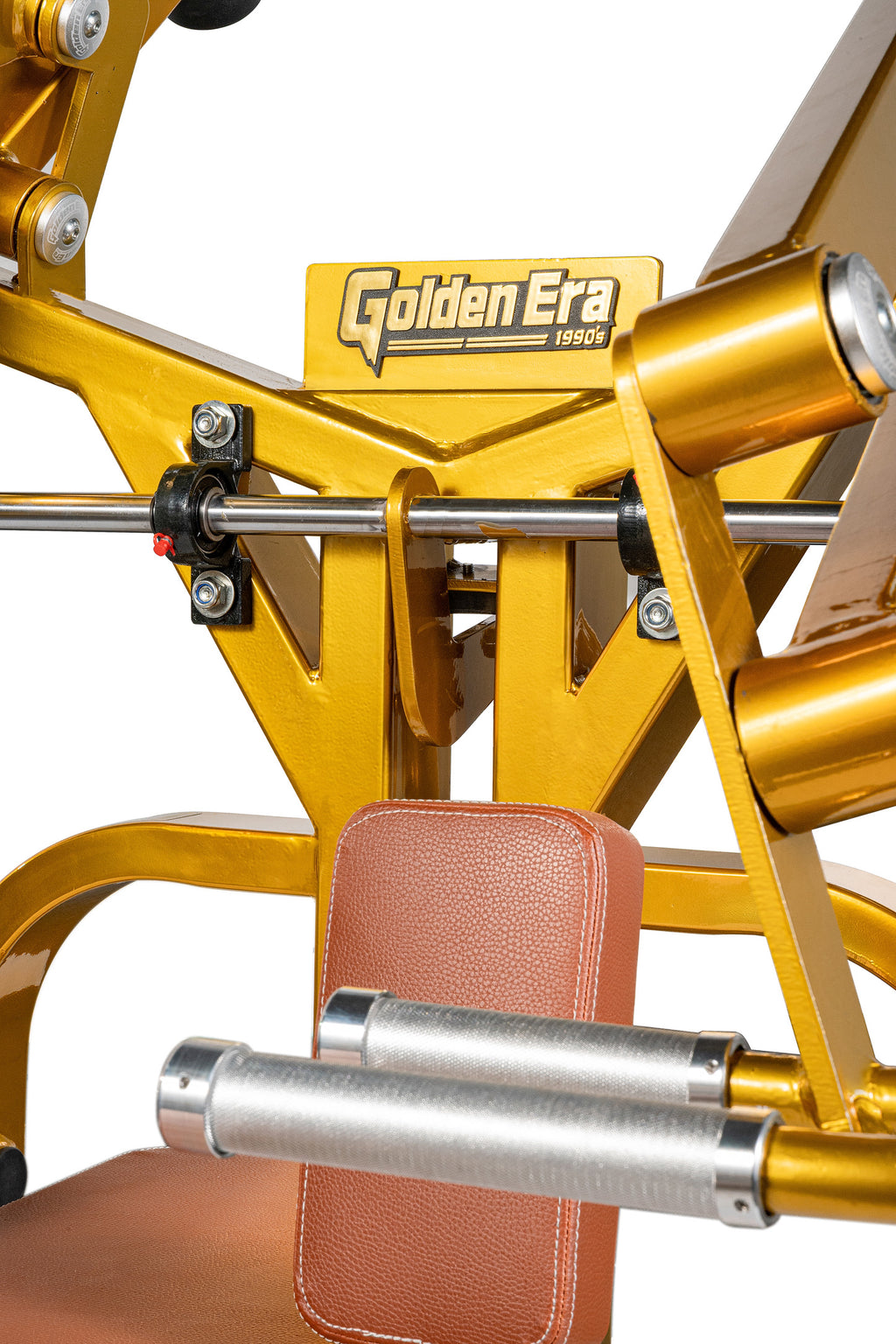

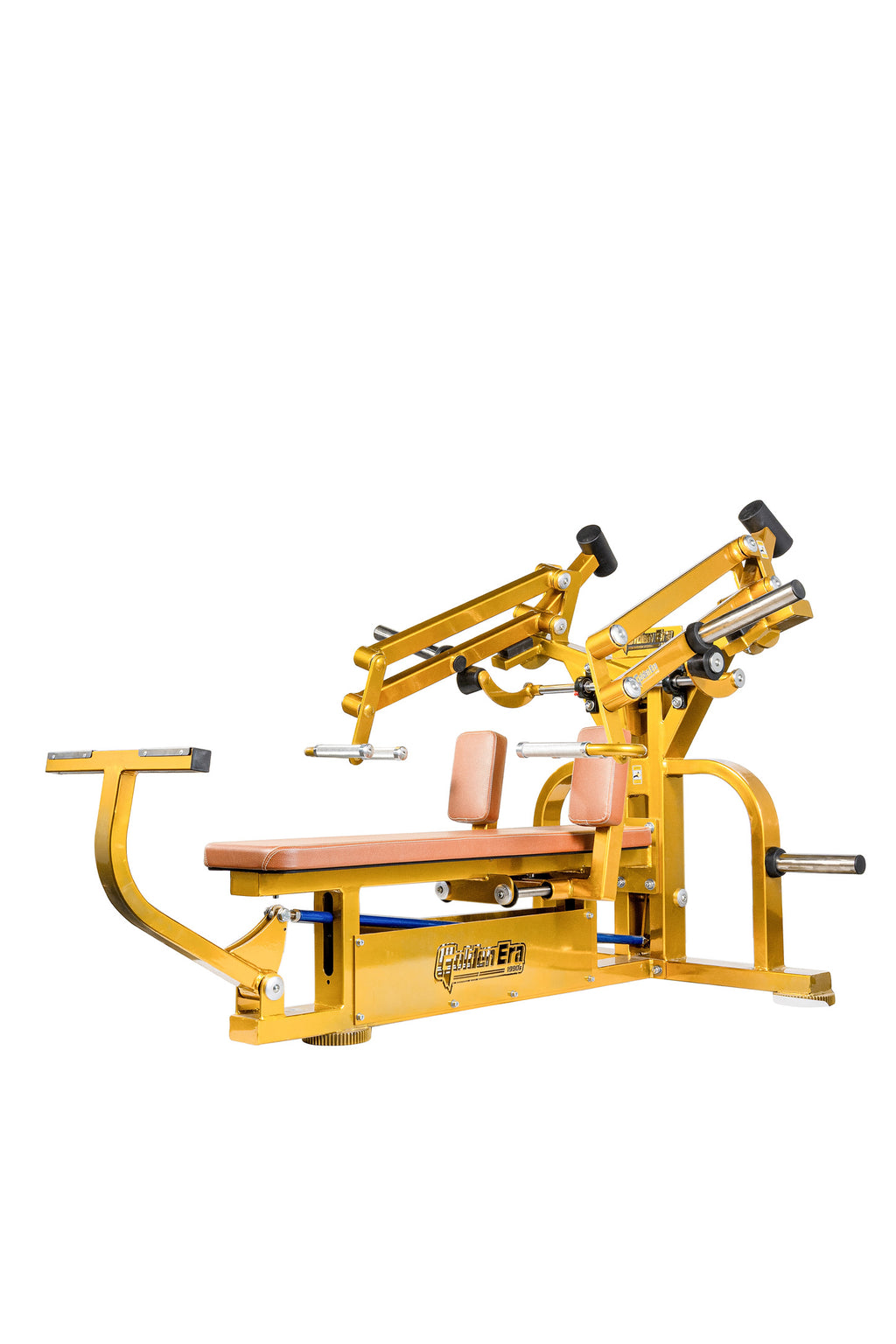

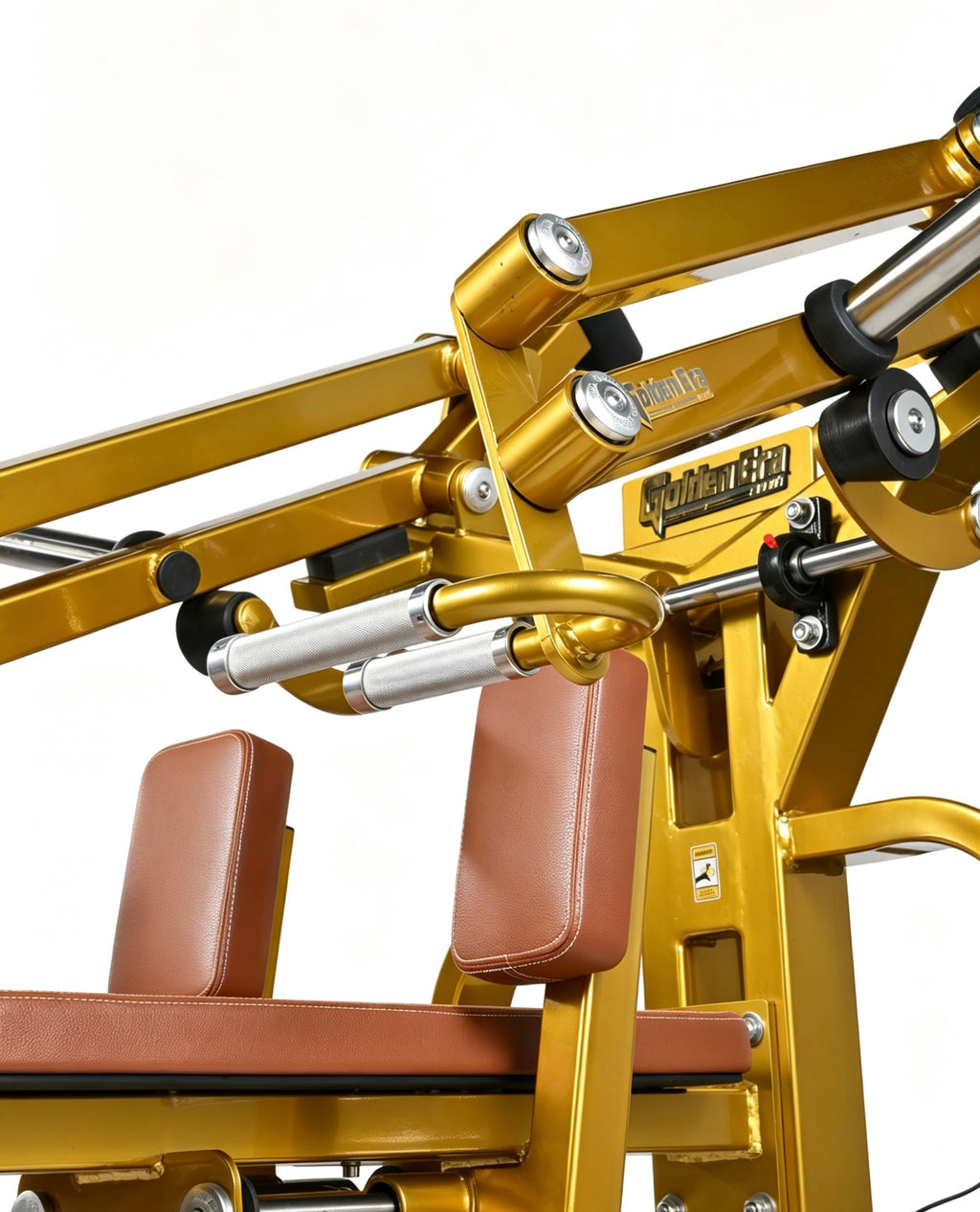

Flat Chest Press
Heavy horizontal pressing, engineered to flow with the body.
- Deep stretch at the bottom
- Convergence you can feel
- A hard squeeze at lockout
Machines are quoted individually, not sold through online checkout. We reply with a quote, shipping to your location and a confirmed build slot.
Why it feels different
Conventional plate-loaded chest presses lock the arms to a single arc, and the shoulder is asked to follow the machine. Golden Era’s patented dual-linkage system joins a second lever to each arm so the handles travel on a path that changes as you press — wider at the bottom, converging at the top, similar to the natural path of a heavy dumbbell press.

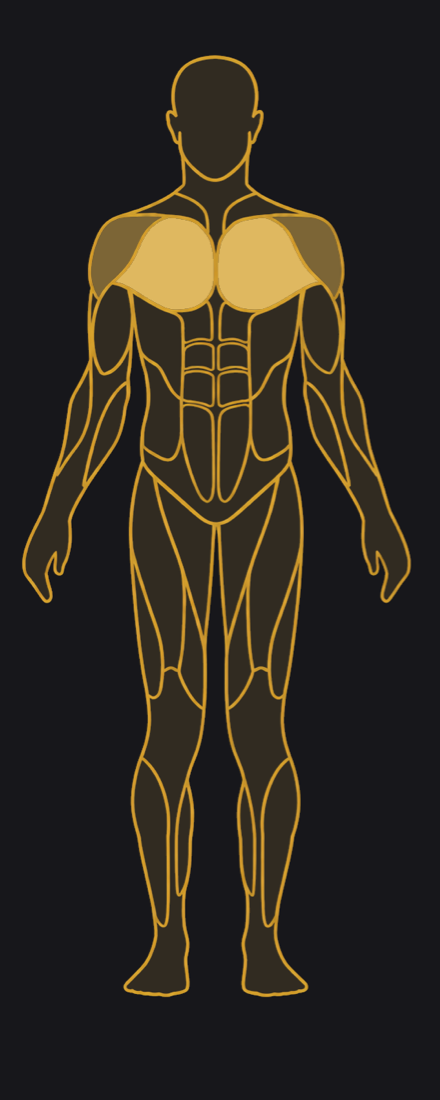

In the stretched position the arms sit wide and low, which places greater emphasis on the chest. Through the middle of the press the path closes, and at lockout the handles finish inside the shoulders where the pectorals reach a shortened position.
Plates hang directly off the linkage — no cam, no cable. Arms move independently, which means a stronger side cannot carry a weaker one.
- Patented dual-linkage arm path
- Plate-loaded resistance throughout

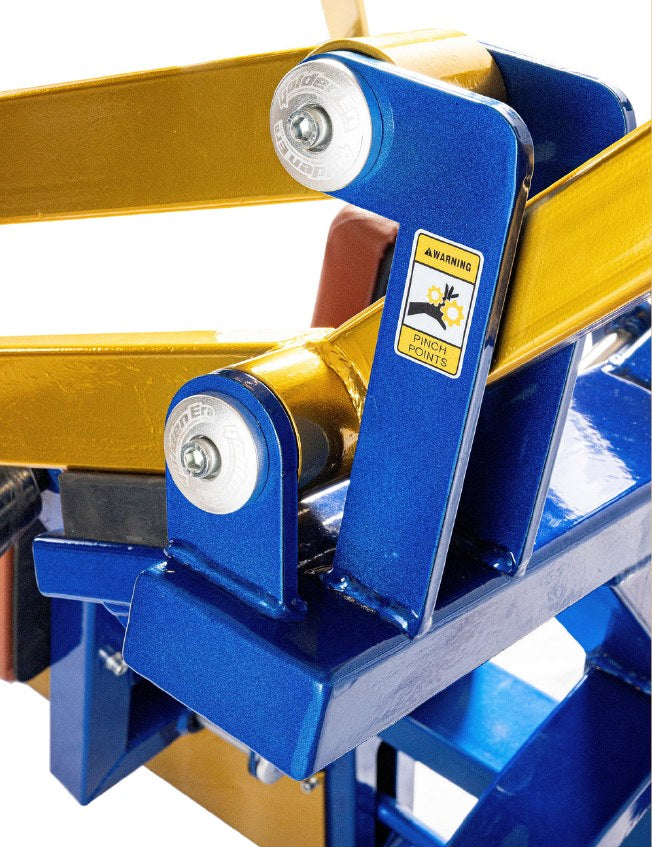

- Sealed pivot bearings, no bushings
- Four 2-inch (50 mm) weight posts, two for storage
- Independent arms, unilateral or bilateral
- Commercial-grade welded steel frame

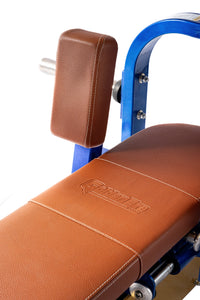

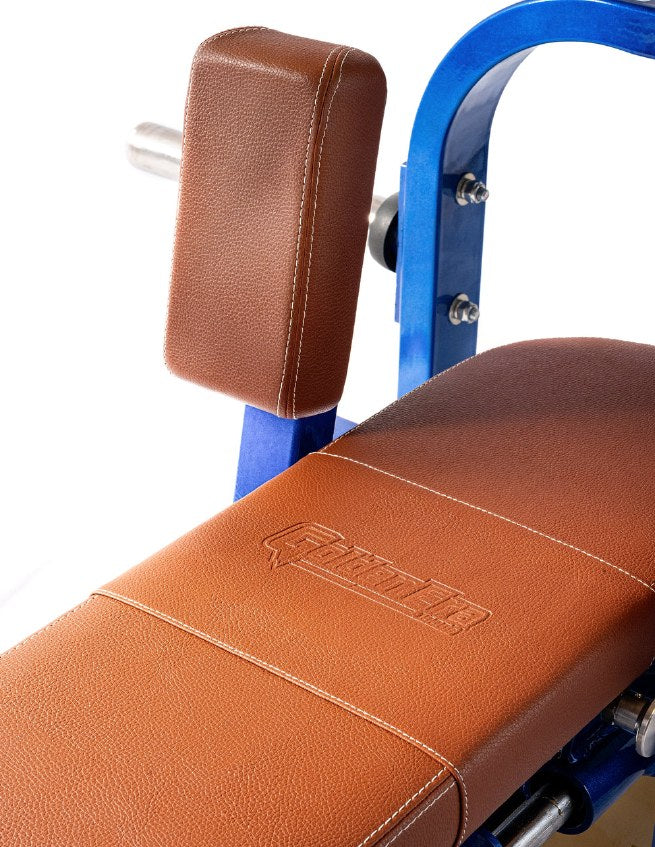

- Golden brown vinyl over one-piece moulded foam
- Heavy-duty 6.6 lb (3 kg) gear-shaped anchor feet, no floor bolting needed
The patented system
One system.
Four machines.
Conventional plate-loaded machines move on one arc. The body does not.

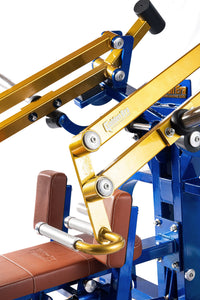

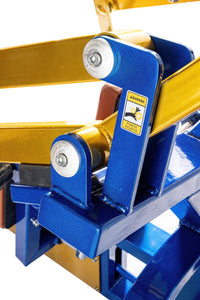

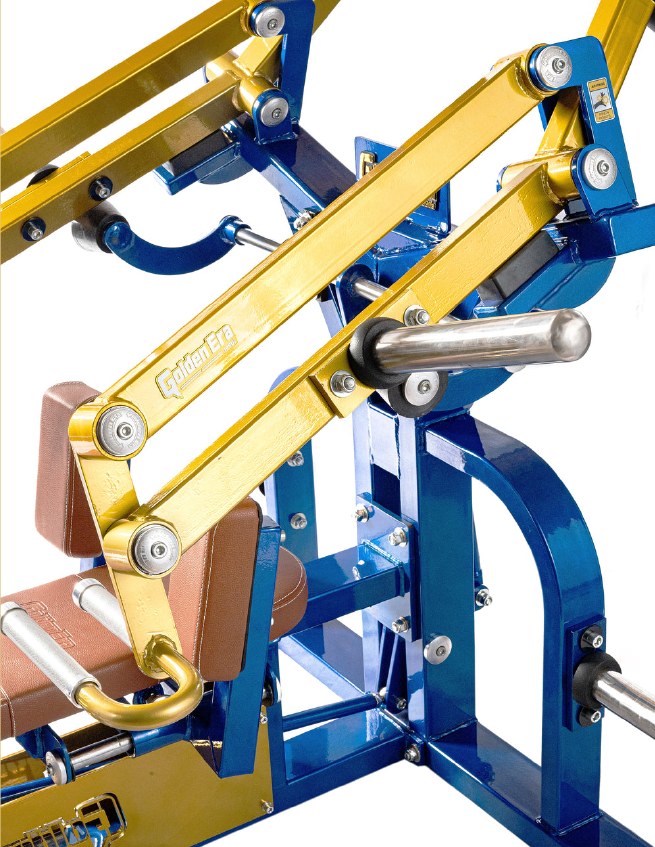

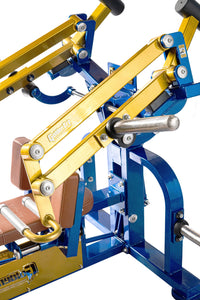

The dual-linkage system joins a second lever to each arm through a second pivot and a rigid link, so the handle path is wider at the bottom and converges at the top. Plates hang directly off the linkage — no cam, no cable.

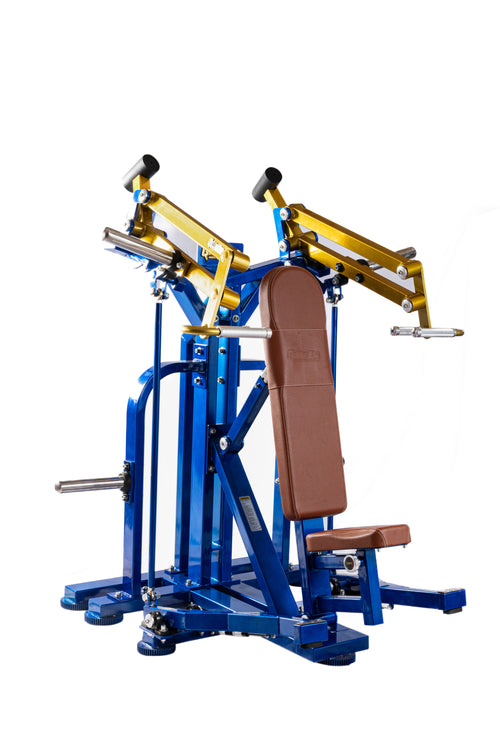

Fitted to GEC-001 · GEC-002 · GEC-003 · GEC-004
- Length
- 71 in1800 mm
- Width
- 55 in1400 mm
- Height
- 52 in1310 mm
- Mass
- 406 lb184 kg
- Footprint
- 27 sq ft2.52 m²
- Weight posts
- 4 (2 for storage)
- Loading dia.
- 2 in50 mm
- Upholstery
- Golden brown vinyl
- Std. finish
- Titanium gold
- Opt. finish
- 6 colours — see below
- Custom colours
- Available
- Packaging
- Shipped assembled on a pallet
- Warranty
- 1-year limited
- Designed in
- Canada
Frames are spray-coated and heat-cured to order. Send the RAL reference with your quote request. A custom colour may extend the lead time. Swatches are approximate; final colour is based on the factory colour card.
Add machines to your quote list and send it. Machines are quoted individually rather than purchased through online checkout.

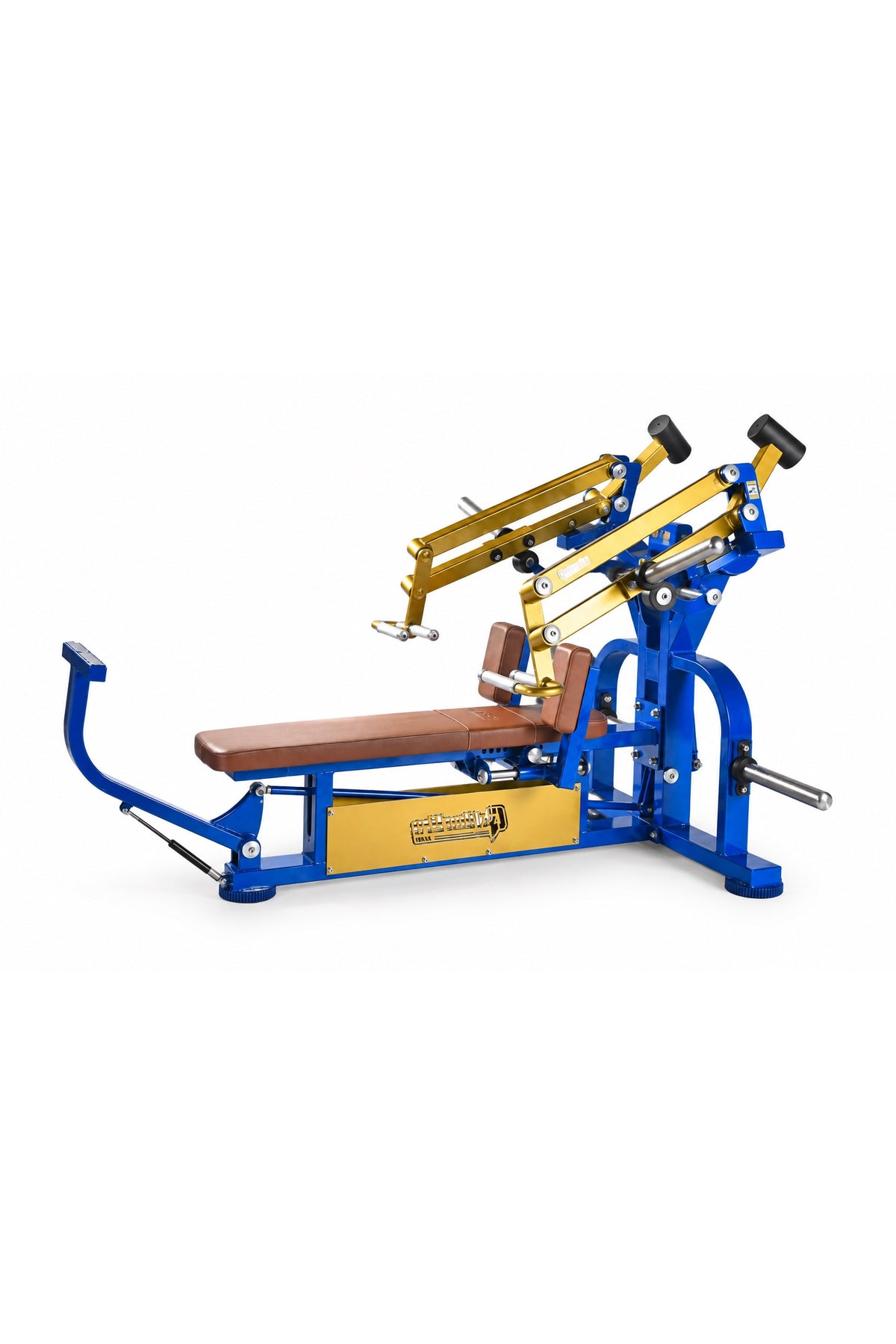

Titanium gold as standard; black, Royal blue, pearl white, pearl red, pearl black or black crackle as options; or any RAL colour on request.
Built to order in 60–90 calendar days. Machines ship fully assembled on a pallet.
Shipping is arranged for your location. Transit time, cost and delivery are confirmed in your quote.
