Classic Era Series · GEC-003 · Plate-loaded

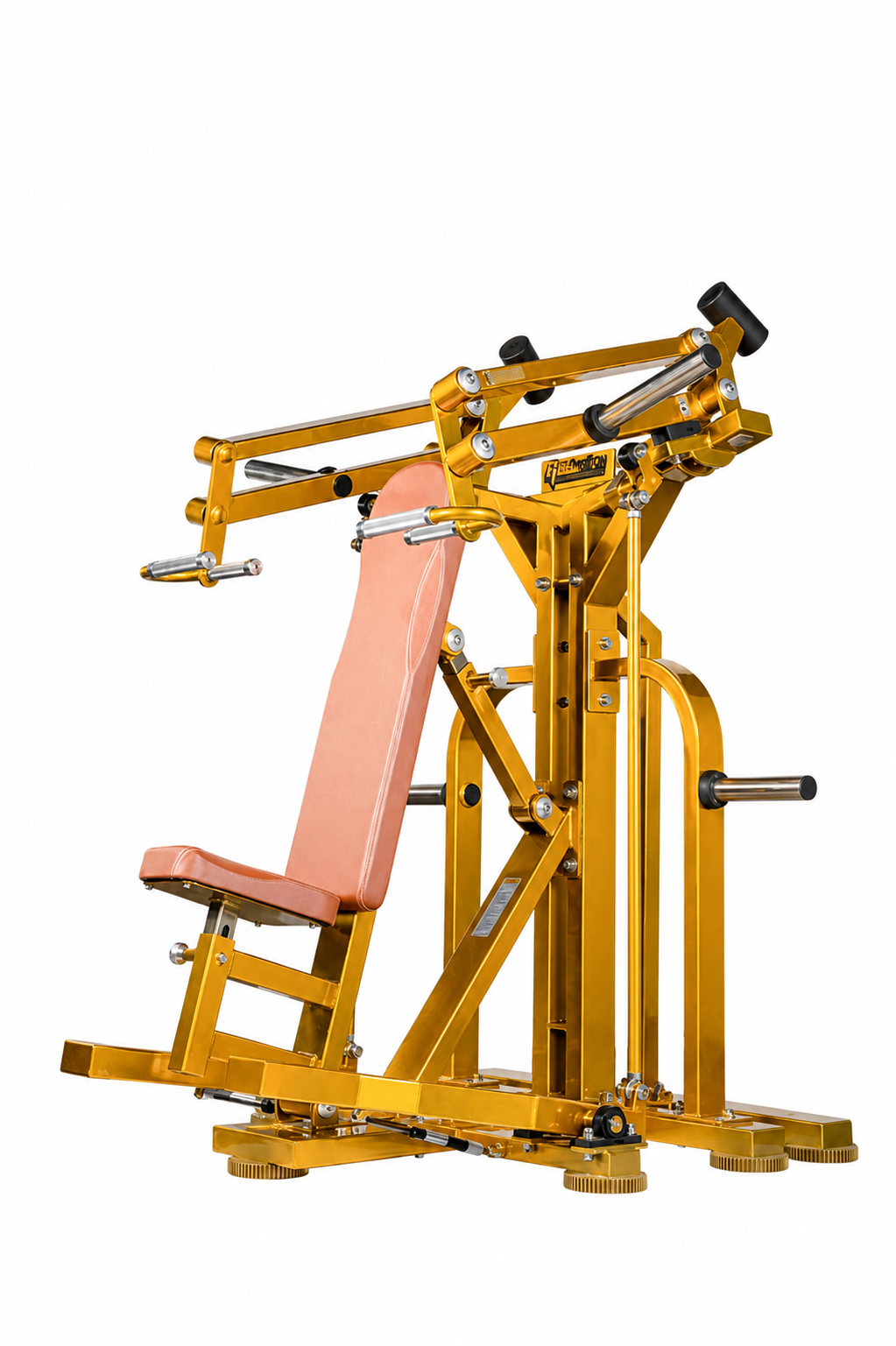

Shoulder Press
Overhead pressing that lets the shoulder rotate.
- Room at the bottom
- Convergence at lockout
- A strong delt contraction at lockout
Machines are quoted individually, not sold through online checkout. We reply with a quote, shipping to your location and a confirmed build slot.
Why it feels different
An overhead press on a fixed arc asks the shoulder to rotate on the machine’s terms. The GEC-003 uses the same patented dual-linkage system as the chest presses: the handles start wide of the shoulders and converge as they rise, allowing the shoulder to follow a more natural path.
The back pad sits upright without locking the ribcage flat, which keeps the load on the delt instead of forcing a lean. The handles are designed to provide overhead clearance through the full stroke.
Plate-loaded, independent arms. Press both together for the heavy work, or one at a time when a side needs to catch up.
- Patented dual-linkage arm path
- Upright back pad, full overhead clearance
- Commercial-grade welded steel frame
- Golden brown vinyl over one-piece moulded foam
- Independent arms, unilateral or bilateral
- Plate-loaded resistance throughout
- Sealed pivot bearings, no bushings
- Four 2-inch (50 mm) weight posts, two for storage
The patented system
One system.
Four machines.
Conventional plate-loaded machines move on one arc. The body does not.

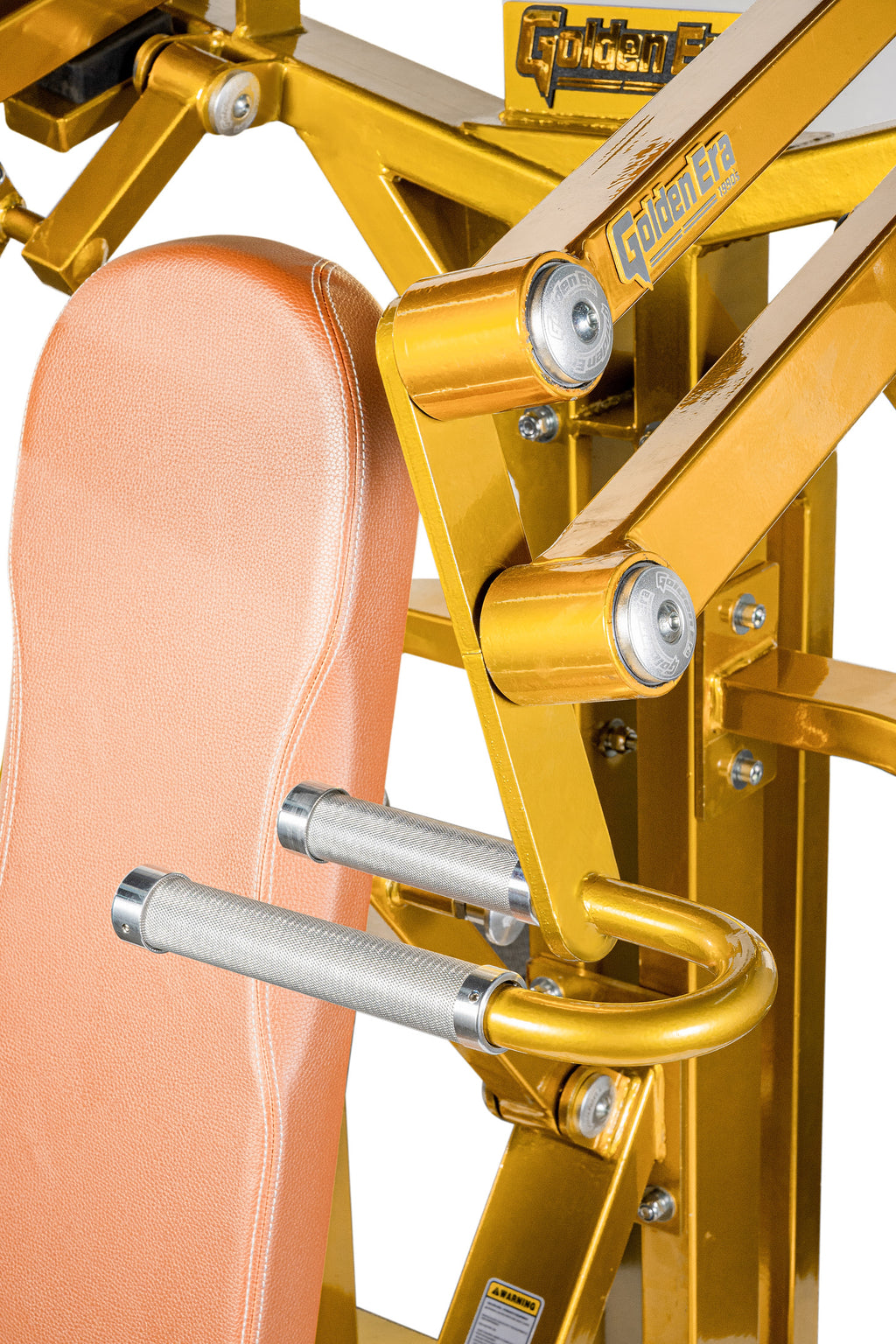

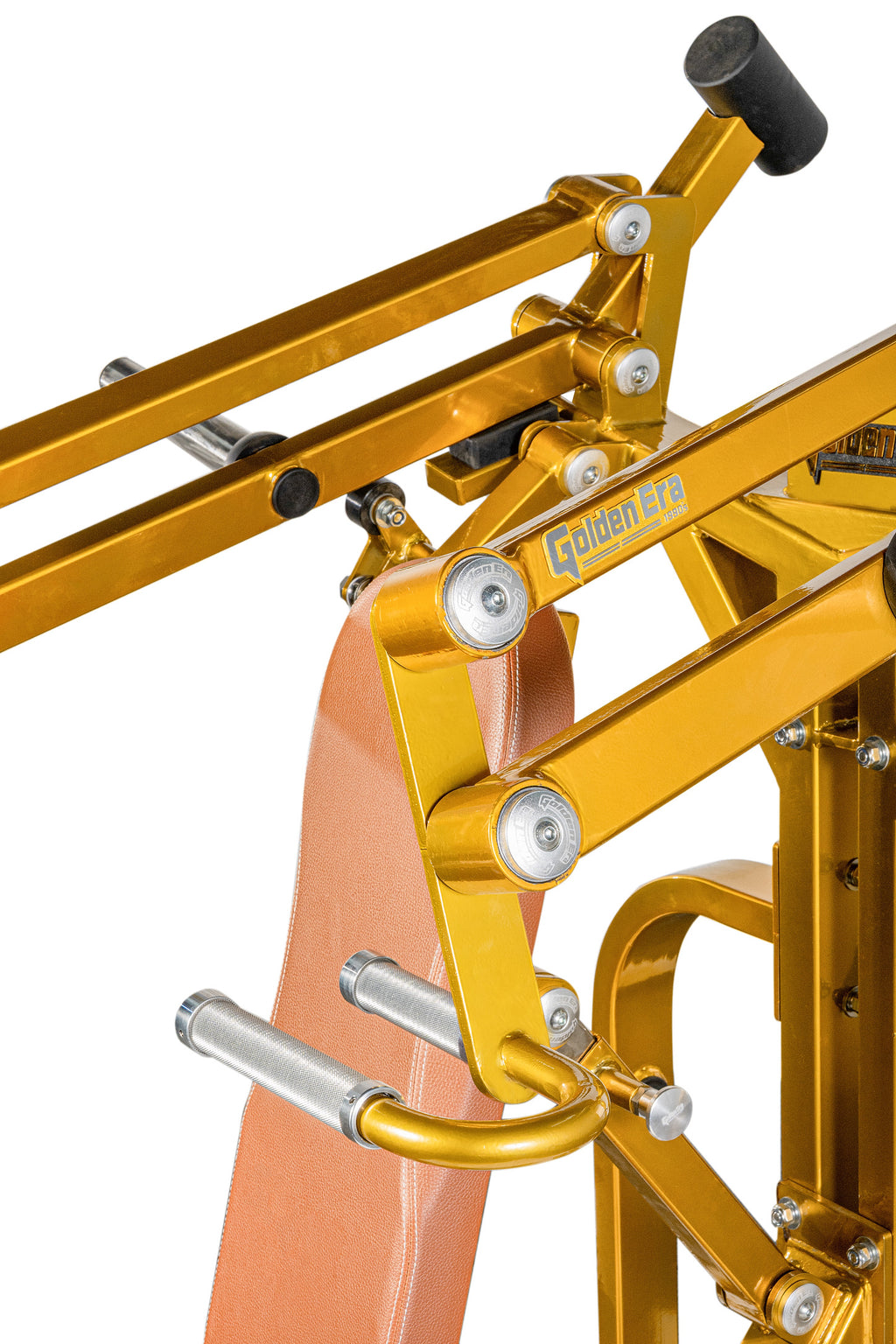

The dual-linkage system joins a second lever to each arm through a second pivot and a rigid link, so the handle path is wider at the bottom and converges at the top. Plates hang directly off the linkage — no cam, no cable.
Fitted to GEC-001 · GEC-002 · GEC-003 · GEC-004
- Length
- 55 in1400 mm
- Width
- 55 in1400 mm
- Height
- 71 in1800 mm
- Mass
- 511 lb232 kg
- Footprint
- 21 sq ft1.96 m²
- Weight posts
- 4 (2 for storage)
- Loading dia.
- 2 in50 mm
- Upholstery
- Golden brown vinyl
- Std. finish
- Titanium gold
- Opt. finish
- 6 colours — see below
- Custom colours
- Available
- Packaging
- Shipped assembled on a pallet
- Warranty
- 1-year limited
- Designed in
- Canada
Frames are spray-coated and heat-cured to order. Send the RAL reference with your quote request. A custom colour may extend the lead time. Swatches are approximate; final colour is based on the factory colour card.
Add machines to your quote list and send it. Machines are quoted individually rather than purchased through online checkout.
Titanium gold as standard; black, Royal blue, pearl white, pearl red, pearl black or black crackle as options; or any RAL colour on request.
Built to order in 60–90 calendar days. Machines ship fully assembled on a pallet.
Shipping is arranged for your location. Transit time, cost and delivery are confirmed in your quote.
